Planar Transformers

Ultra-High Density Magnetics for Advanced Power Conversion Systems

Our planar transformers are engineered for designers who demand maximum power density, ultra-low losses, and superior thermal performance within compact form factors. Built using multilayer PCB windings and precision ferrite core systems, these transformers deliver exceptional efficiency and reliability across high-frequency power applications.

Request Datasheet Share Requirements

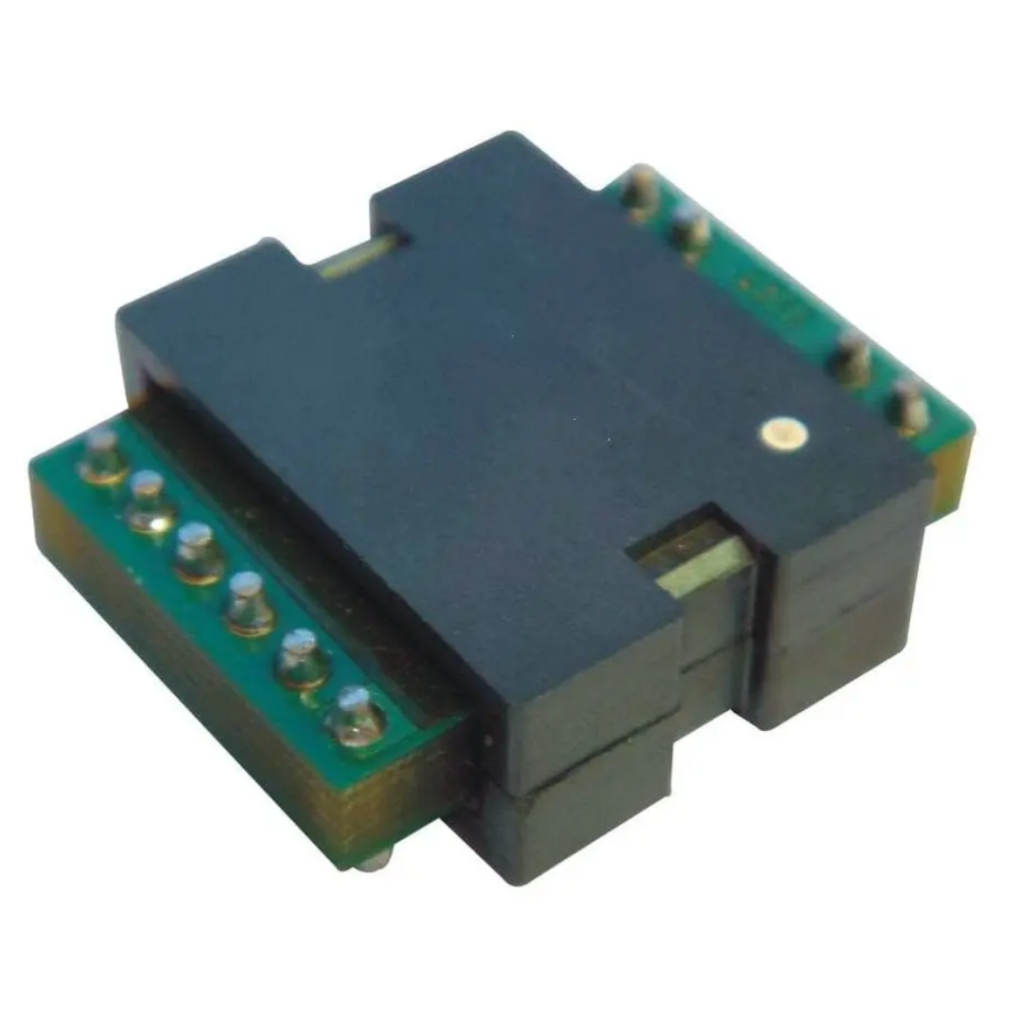

Planar Transformers - Electronics Circuit Board
High Efficiency
Up to 99% conversion efficiency
Compact Design
60% smaller footprint
8kV
Isolation
2MHz
Frequency
Product Overview

Engineered for Excellence

Planar transformers combine low-profile architecture, tight magnetic control, and repeatable PCB-based winding structures to achieve outstanding electrical performance. The optimized geometry enables minimal leakage inductance, reduced copper losses, and excellent heat spreading—ideal for high-frequency SMPS and isolated DC-DC converter topologies.

Each unit is built to meet stringent global reliability standards and is fully customizable to match your power architecture, EMI goals, and thermal envelope.

Planar Transformers - PCB and Electronics Components
Premium Product Features

Why Choose Our Planar Transformers

Ultra-Compact, High-Power Design

Engineered for power stages where every millimetre of space matters. Achieve up to 60% smaller footprint compared to conventional wound transformers.

High-Frequency Efficiency

Purpose-built for modern switching topologies operating from 20 kHz to 2 MHz, delivering exceptional conversion efficiency with minimal parasitic losses.

PCB-Integrated Windings

High-precision copper layers ensure tight tolerance, predictable parasitics, and zero variability between units—ideal for safety-critical systems.

Superior Thermal Performance

Flat winding geometry promotes uniform heat distribution, enabling high power throughput without thermal stress.

Product Applications

Trusted in Advanced Power Systems

Built for sectors where efficiency, miniaturization, and reliability are non-negotiable.

Electric Vehicle onboard chargers & HV DC-DC converters

Telecom & data center power modules

Aerospace & defense high-reliability converters

Medical isolation power supplies

Industrial automation & high-frequency SMPS

High-power density inverters & microinverters

Technical Specifications

Product Summary

Custom electrical, mechanical, and thermal specifications available on request.

Power Handling
10 W – 10 kW
Frequency Range
20 kHz – 2 MHz
Isolation Voltage
Up to 8 kV
Winding Layers
2 – 12 PCB layers
Efficiency
Up to 99% (topology dependent)
Temperature Range
-40°C to +155°C
Core Types
EE, ER, EFD, PQ, ETD, custom ferrite
Copper Thickness
1 oz – 6 oz
Safety Compliance
IEC 62368, IEC 61558, UL standards
Why Our Planar Transformers Stand Out

Built Without Compromise

Designed for High-Performance Power Architectures

Optimized for LLC, Forward, Full-Bridge, Flyback, and resonant topologies.

Precision-Engineered Consistency

PCB windings eliminate manual variation, ensuring perfect electrical matching across production lots.

Scalable from Prototype to Mass Production

Our controlled assembly processes ensure stable performance across all volumes.

Built for Harsh Environments

Ideal for EV, industrial, defense & high-reliability applications requiring long lifecycle and thermal robustness.

Complete Engineering Support

We assist with magnetic modelling, thermal design, EMI optimization, and prototype validation.

Customization Options

Tailored to Your Needs

Whatever your power architecture demands, we deliver a tailored magnetic solution.

Optimized core geometries for specific topologies
PCB copper thickness and layer stack customization
Core gapping for precise inductance control
Reinforced insulation systems for high-voltage designs
Potting, encapsulation & thermal enhancement materials
Mechanical integration support for compact system layouts
